Stereo Microscopes

Stereo Microscopes are designed to observe non-transparent materials and specimens at relatively low magnifications, typically from 5x to 50x. A three-dimensional image and large depth of field make stereo microscopes ideal for analysing all kinds of material surfaces and objects. They are extensively used within industry, laboratories, education and hobbyists. Greatly appreciated by biologists, entomologists, geologists, mechanical and electronic engineers and other professionals such as jewellers and dental technicians. In this stereo microscope guide we cover the key technologies, features and benefits of the models we stock from Euromex in Holland, in order to help you select a one that suits your application and budget.

We stock a wide range of Euromex Stereo Microscopes:

EduBlue Stereo Microscopes
EduBlue
Euromex StereoBlue Stereo Microscopes
StereoBlue
Euromex NexiusZoom Stereo Microscopes
NexiusZoom

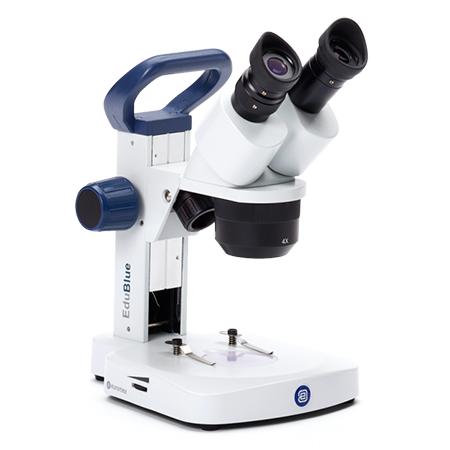

EduBlue - fixed magnification, 5x to 80x, entry level models for schools & hobbyists. Working distance 60mm, Ideal small for insects, plants, stones and minerals

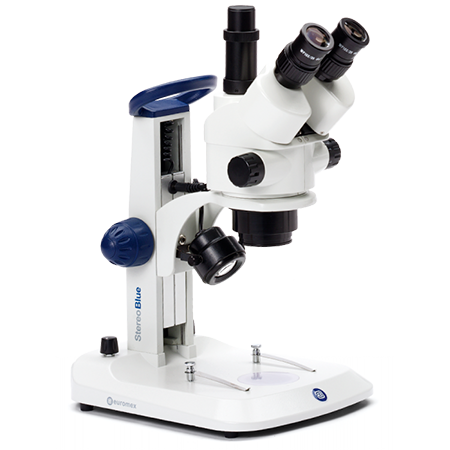

StereoBlue - zoom magnification, 7x to 45x, longer working distance 100mm and wider field of view (FOV) than EduBlue. Optional lenses expand magnification up to 135x

StereoBlue EVO - greater zoom magnification, 5x to 55x, working distance 100mm. Optional lenses and eyepieces expand magnification up to 165x.

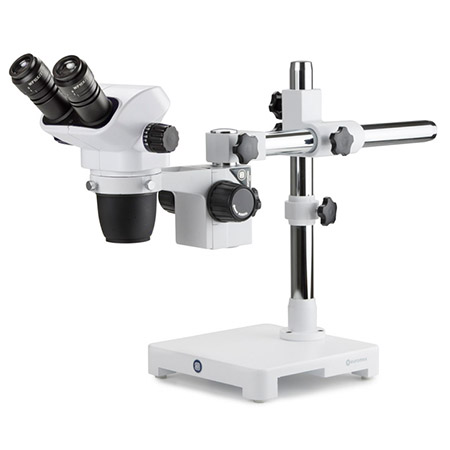

NexiusZoom - zoom magnification, 6.7x to 45x, working distance 110mm. Optional lenses and eyepieces expand magnification up to 180x. Wider FOV than StereoBlue

NexiusZoom EVO - greater zoom magnification, 6.5x to 55x, working distance 110mm. Optional lenses and eyepieces expand magnification to 220x. EVO models have widest FOV of all.

Compare Stereo Microscope Models

EduBlueStereoBlueStereoBlue EVONexiusZoomNexiusZoom EVO
Magnification TypeFixedFixed & ZoomZoomZoomZoom with click stop
Magnification Range10x/20x/30x/40xZoom models 7x to 45x
Fixed models 20x/40x
5x to 55x6.7x to 45x6.5x to 55x
Max Magnification with
accessory lens & eyepiece
80x135x165x180x220x
Min Magnification with accessory lens & eyepiece5x3.5x1.5x2x2x
Field of View (FOV) Max
with standard lens
20 mm30 mm38 mm32.8 mm35.4 mm
Working Distance std lens60 mm100 mm100 mm110 mm110 mm
Head TypeBinocular/Trinocular/
Digital
Binocular/TrinocularBinocular/Trinocular Binocular/Trinocular Binocular/Trinocular
Used BySchools
Kids
Schools
Hobbyists
Industry
Industry
Laboratories
Hobbyists
Industry
Laboratories
Hobbyists
Industry
Laboratories
Hobbyists
Used ForEntomology
Botany
Geology
Electronics
Mechanical
Entomology
Geology
Botany
Electronics
Mechanical
Veterinary
Entomology
Geology
Botany
Electronics
Mechanical
Veterinary
Entomology
Geology
Botany
Electronics
Mechanical
Veterinary
Entomology
Geology
Botany
Price Range incl vat£190 - £490£280 - £740£500 - £930£600 - £1,300£780 - £1,500

All Stereo microscopes (often called stereoscopes) have two sources of magnification. One through the objective lens and the second through the eyepiece. The total magnification is achieved by multiplying the magnification of the objective lens by that of the eyepiece lens. For example, a magnification of 40x can be achieved using a standard eyepiece magnification of 10x with a 40x objective lens. By using accessory lenses you can either reduce or increase the standard range of magnification from as low as 2x up to as high as 220x on some models.

Microscope Cameras

Digital Imaging with Stereo Microscopes

Digital Imaging is also possible with stereo microscopes by adding a camera. The most convenient way to go digital is to select a model* with a trinocular head, this is a head which has two eyepieces and a separate photo-port for attaching a camera. Trinocular heads enable you to view your objects using both eyepieces and camera. Then just choose a camera that meets your needs and budget. For help with selecting a camera read our guide to microscope cameras.

Discover our most popular stereo microscope and cameras bundles.

*N.B. Three EduBlue models have an integrated camera.

Stands

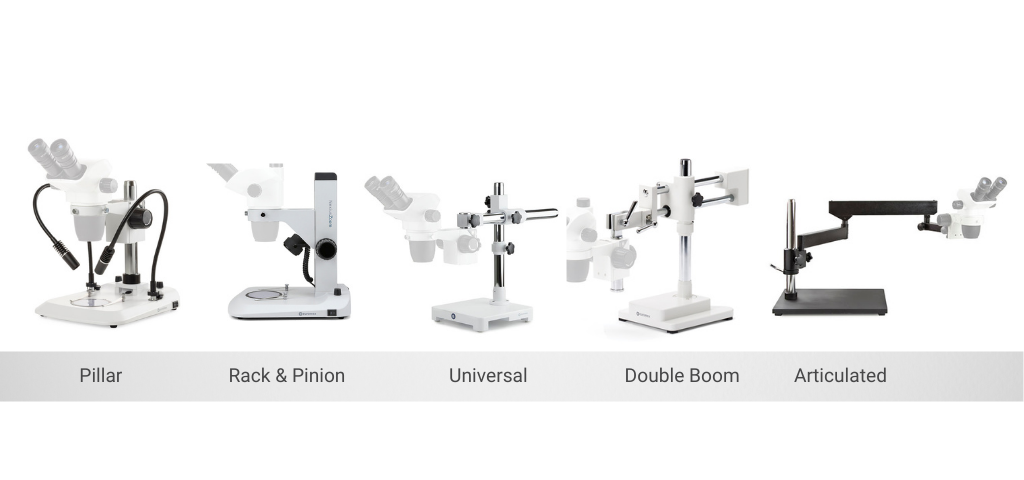

There is a choice of stands for StereoBlue and NexiusZoom microscopes: Pillar, Rack & Pinion, Universal, Double Boom and Articulated arms. The most appropriate stand varies with application and how much flexibility you need for moving the optical head and space for the objects being examined.

Stereo Microscope Stands
Stereo Microscope Illumination

Illumination

The right illumination source makes a significant difference and so it is worth considering or experimenting with what works best. Almost all illumination sources are LED now. The most common illumination types for Stereo Microscopes are:

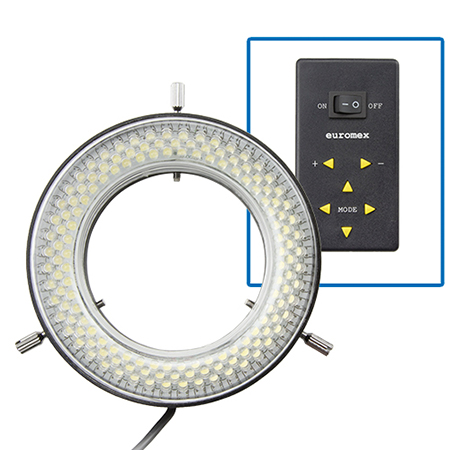

LED Ring Lights

Flexible Light Guides

Transmitted Light stage

The LE.5212 Illumination station combines all three into one attractively priced system.

Some models have illumination integrated into the stand, providing both Incident light (from above) or Transmitted light (from below). This includes the Pillar and Rack & Pinion Stand models.

The Universal, Double Boom and Articulated Arm Stands do not have integrated lights so the illumination needs to be specified. We recommend illumination sources for these model in the Related Accessories area of each product.

View all illumination sources.

Summary

We hope this guide to stereo microscopes will help you narrow down the choice from the wide range of models available. Whether your budget is £200 or £2,000 we have a model suitable for your application. We are always here to help and advise so do contact us with any questions you may have.
